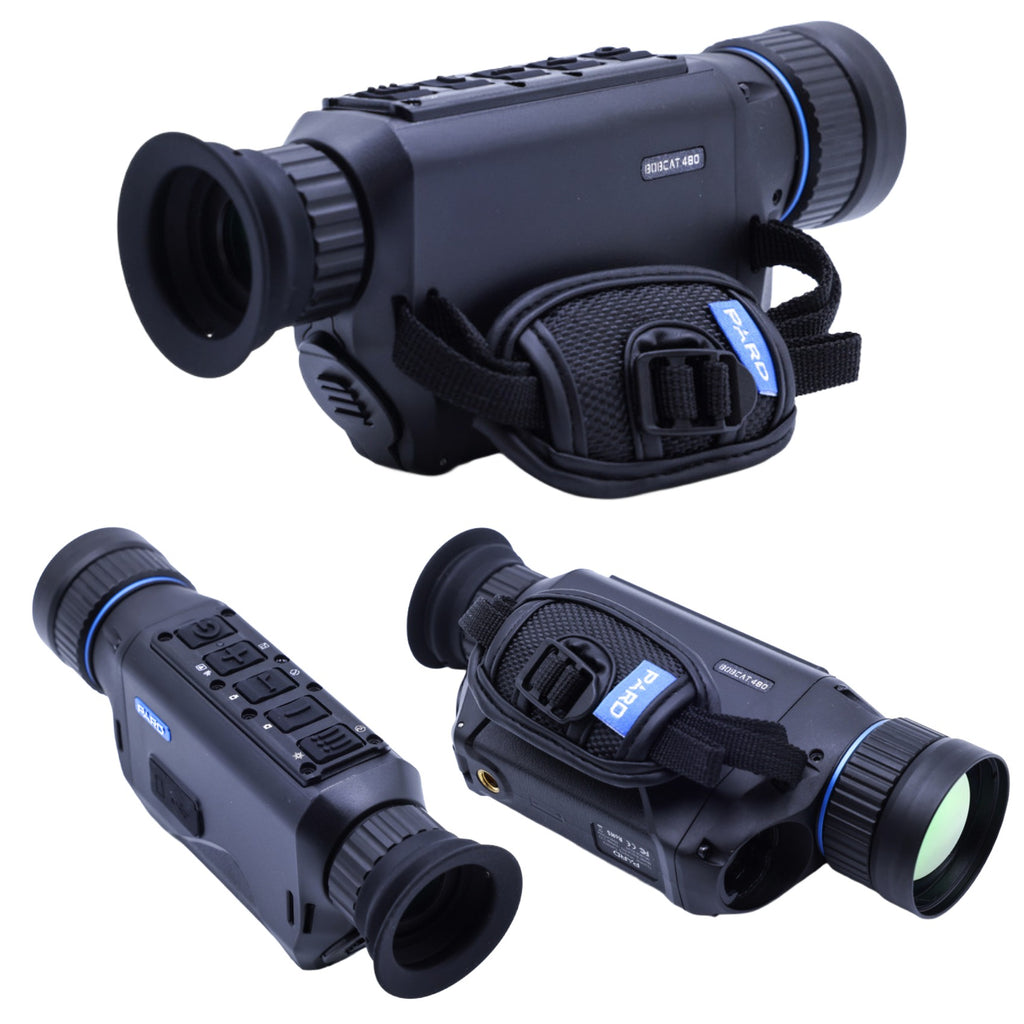

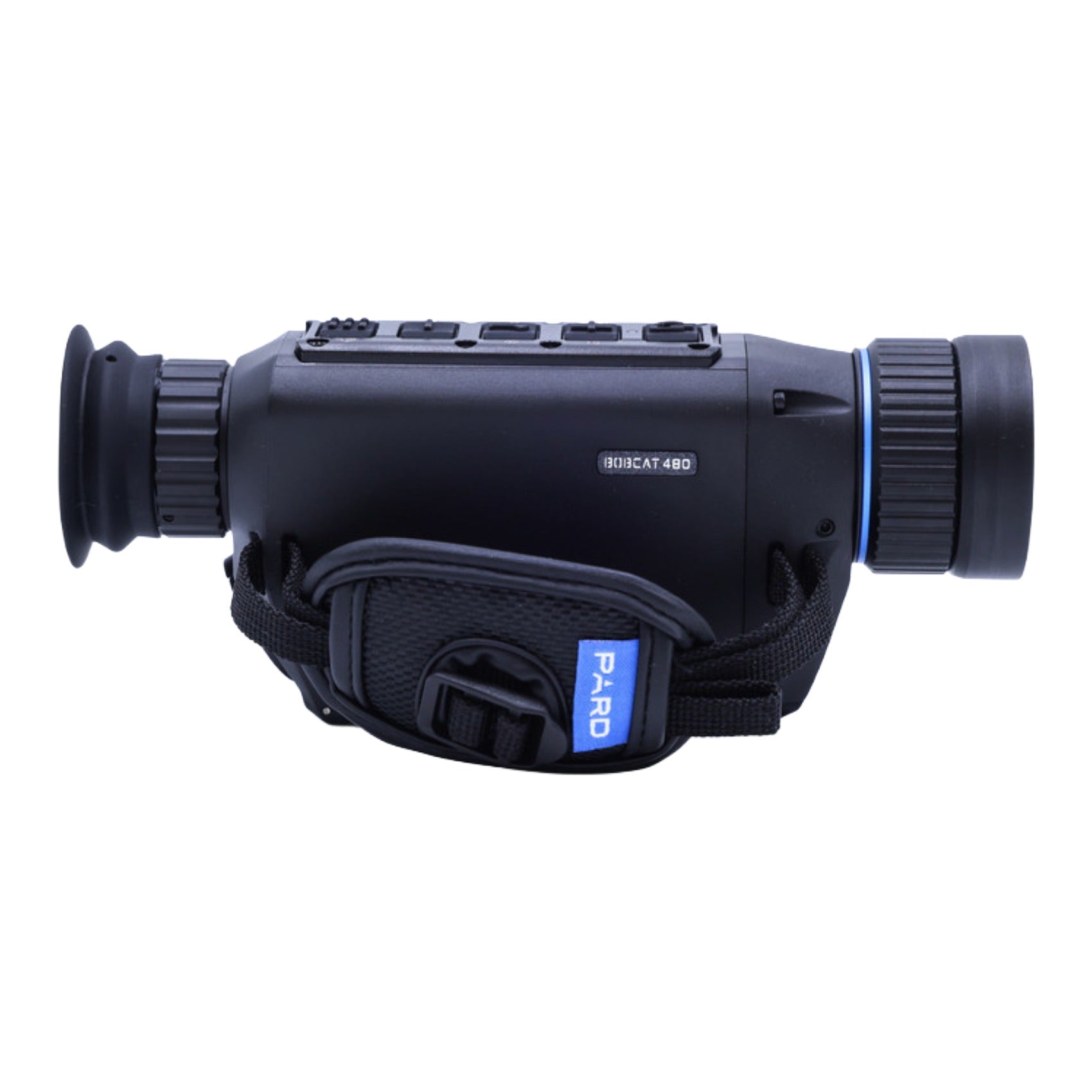

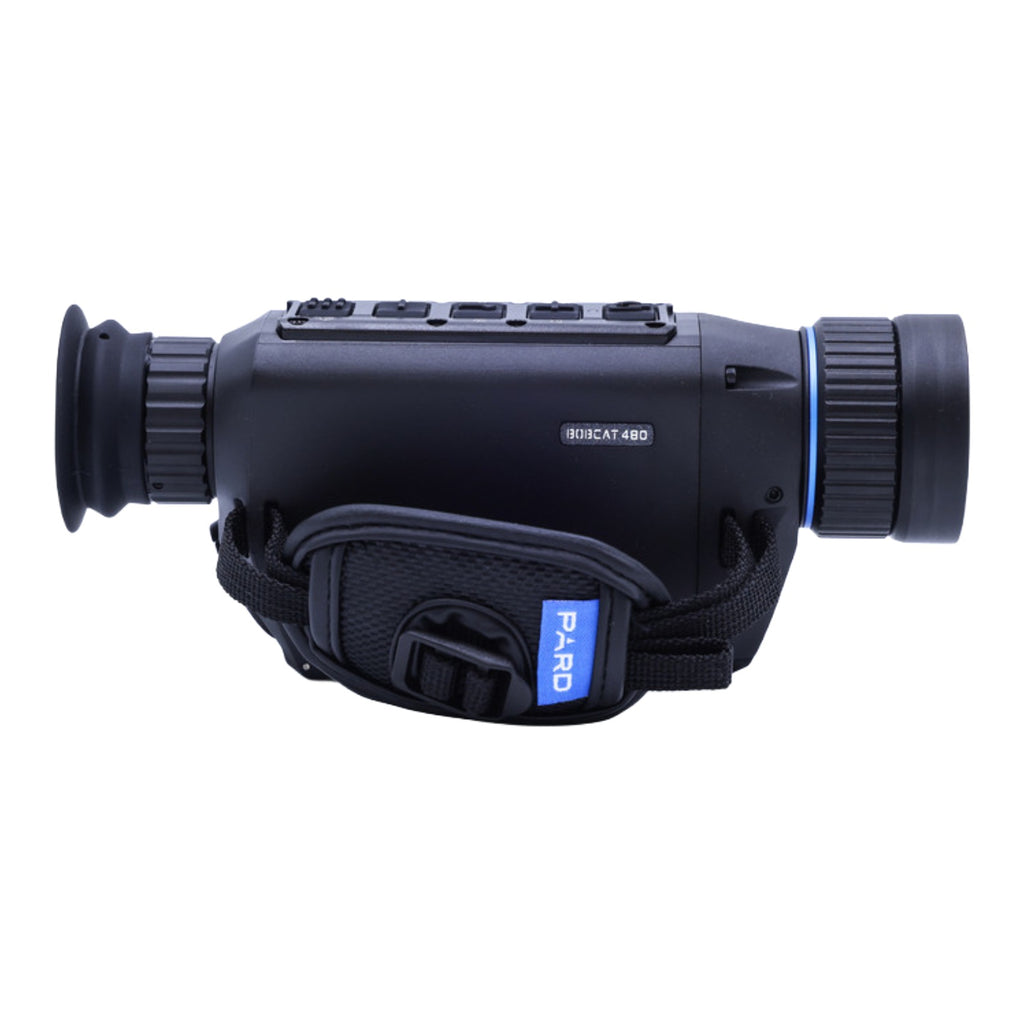

PARD Bobcat 480 Thermal Imaging Monocular
147-BOContinuing the legacy, the Bobcat (640 & 480) is lightweight, ergonomically friendly, and provides cutting-edge optics through state-of-the-art electronics. Equipped with an all-new generation sensor (NETD ≤ 18mk), the Bobcat detects even the smallest thermal differences with ease and delivers exceptional imagery to the end user. The 1920x1080 OLED display offers enhanced brightness, sharper resolution, and superior contrast compared to traditional LCD screens. Whether you're in the field or on the move, it's built to go anywhere without slowing you down. Compact. Capable. Ready.
Reliable Thermal Detection with 12μm Pixels
With 480x360 (or 640x512) resolution and 12μm pixel size, this sensor provides solid thermal performance. It captures temperature variations effectively, aiding in precise target recognition.
Next-Gen Thermal Sensor with Superior Sensitivity
Equipped with a new generation sensor (NETD ≤ 18mK), this device detects even the smallest thermal differences. It delivers thermal images with exceptional detail—making it ideal for precision spotting in any environment.
Vivid OLED Visuals with Exceptional Clarity
The 1920×1080 OLED display offers enhanced brightness, sharper resolution, and superior contrast compared to traditional LCDs. It provides more lifelike imagery, making it easier to spot and identify targets.
General
Model
Bobcat 480, Bobcat 640
Classification
Thermal Imaging monocular
Sensor
Sensor Type
Uncooled VOx (vanadium oxide)
480 Sensor Resolution(pixel)
480*360
640 Sensor Resolution(pixel)
640*512
Pixel size(μm)
12*12
Sensitivity(lux)
≤18mK（0.018℃)
Frame rate(Hz)
50
Frame rate(Hz)
1800
Optics
Objective lens(mm)
35
480 Optical Magnification(x)
3.5
640 Optical Magnification(x)
2.6
Digital zoom(x)
2/4/6/8
480 Horizontal Field of view(°)
9.4
480 Vertical Field of view(°)
7.1
480 Diagonal Field of view(°)
11.7
640 Horizontal Field of view(°)
12.5
640 Vertical Field of view(°)
10
640 Diagonal Field of view(°)
16
480 Horizontal Field of view (m @100m)
16.5
480 Vertical Field of view (m @100m)
12.3
640 Horizonal Field of view (m @100m)
21.9
640 Vertical Field of view (m @100m)
17.6
Focus range
3m ~ ∞
Diopter adjustment(D)
±5D
Display
Display Type
OLED
Display Resolution(pixel)
1920*1080
Image mode
WT-HOT/BK-HOT/H-light/RD-HOT/IN-HOT/SKY
Video & Photo
Photo Resolution(pixel)
1440*1080
Photo Format
.JPG
Video Resolution(pixel)
1440*1080
Video Format
.mp4
Main function
LRF/m
1000
Compass
Yes
PIP
Yes
Auto recording
Yes
Loop recording
Yes
Time stamp
Yes
Record audio
Yes
Storage(GB)
Micro SD card (Max. 128GB)
Connections
USB Type-C
Yes
WiFi
Yes
Supported Apps
PardVision2
Power Supply
Battery type
Li-ion Battery 18650*1
Output voltage(V)
3.7
Output voltage(V)
6
External power supply
Type-C
Material
Housing
AL6061 & Composite
Objective lens
All-glass multi-coated lens
Measurement
Product dimension
(L x W x H, mm)170*70*43
N.W/pcs(with battery, g)
405
