Autel Evo Lite 640T Enterprise Thermal Drone - Premium Bundle with 7.9" Smart Controller
ATLDRN640T-PRMAlert When Back in Stock
We will notify you when this product is back in stock
If you are in a hurry, please call before ordering if you need one of these drones. We are doing our best to keep them in stock and will be able to drop ship, but inventory is always changing. There could be a slight wait on these Drones.
Born small but mighty. The outstanding flight performance of the EVO Lite Enterprise Series drones effortlessly tackles various challenges across multiple scenarios, significantly enhancing the efficiency of single-person mission flights.
Looking for a high-performance drone with advanced imaging capabilities? This model combines visible-light and thermal imaging cameras to enhance operational decision-making in any environment.
- High-Resolution Thermal Imaging – Equipped with a thermal imaging sensor offering up to 640x512 resolution for detailed heat detection.
- Enhanced Zoom and Range – Features a 9.1mm lens and 16x digital zoom, allowing subject recognition at distances of up to 100 meters.
- Radiometric Temperature Detection – Provides accurate temperature readings for better analysis and situational awareness.
- AI Target Recognition – Automates object identification and mapping, increasing efficiency in various applications.
- Extended Flight Time – Achieves an industry-leading 40-minute flight time, maximizing productivity in the field.
-
Long-Distance Connectivity – Maintains a strong transmission signal at distances of up to 7.4 miles.

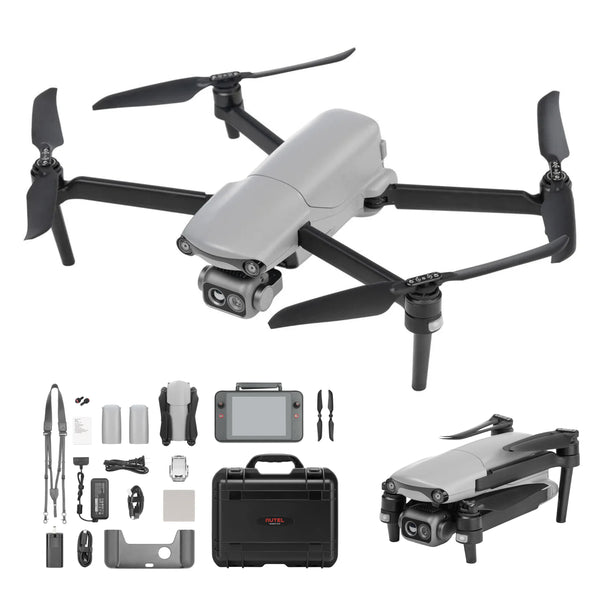

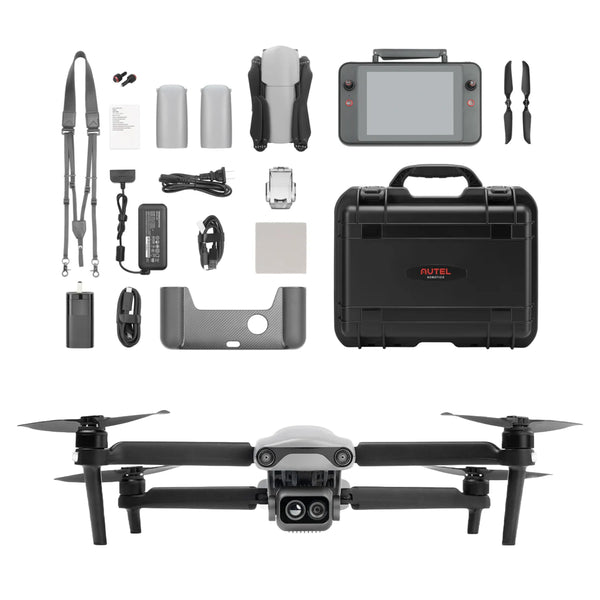

Package Includes:
- EVO Lite 640T Enterprise Aircraft
- Hardside Case
- 3 Total Aircraft Batteries
- 7.9" Smart ControllerÂ
- Propellers
- Gimbal Cover
- Battery Charger & Power Cable
- Controller Power Cable
Designed for professionals in security, search and rescue, wildlife monitoring, and industrial inspections, this drone delivers unmatched performance and reliability.
Features
Split-Screen Display
Visible light, infrared, or map support dual-channel simultaneous output on the screen, providing comprehensive information through comparison.
Customizable Toolbar
Customize the menu toolbar in the app for quick access to frequently used functions, meeting personalized usage needs.
Offline Maps
Addresses the issue of map loading failures in no-network or weak-network environments by supporting offline maps, aiding in precise flight positioning.
Privacy Protection
Flight logs, locations, and other user privacy data require user consent to upload.
Encrypted Storage
Supports AES encryption for photos, videos, and flight logs, requiring a password for access.
Video Live Streaming
Supports RTMP and GB28181* protocols for live streaming, allowing for remote real-time viewing and analysis.
*The GB28181 video live streaming protocol feature is pending future updates
Autel Enterprise App
Autel Enterprise is a professional flight mission software designed for industry applications by Autel Robotics. It features an optimized interaction design for simple and efficient operation, an editable toolbar design for intuitive use, and integrates intelligent and professional functions to fully utilize the industry value of the EVO Lite
Enterprise Series aircraft.
Autel Robotics Care Plans can be found by clicking HERE
| Weight | 1.91 lbs (866 g) |
| Max. Takeoff Weight | 1.91 lbs (866 g) |
| Dimensions | 210*123*95 mm(fold, incl. propellers)Â 433*516*95 mm (unfold, excl. propellers) |
| Diagonal Wheelbase | 368mm |
| Max Ascent Speed | 6m/s |
| Max Descent Speed | 4m/s |
| Max Horizontal Speed (windless near sea level) | 18m/s |
| Maximum Takeoff Altitude | 9,842 ft (3000m) |
| Max Flight Time (windless) | 40 mins |
| Max Hover Time (windless) | 37 mins |
| Max Wind Resistance | 10.7m/s |
| IP Rating | IP43 |
| Max Tilt Angle | 33° |
| Max rotation angular speed | 200°/s |
| Operating Temperature | -10℃～+40℃ |
| Operating Frequency | 2.4G: 2.400 – 2.476 GHz*; 2.400 – 2.4835 GHz 5.2G: 5.15 - 5.25 GHz** 5.8G: 5.725 - 5.829 GHz*, 5.725 - 5.850GHz *Only applicable to SRRC regions **Only applicable to FCC regions Note: Some frequencies are only available in some regions and some frequencies are only allowed for indoor use. Check local laws and regulations for details |
| GNSS | GPS+Galileo+BDS+GLONASS |
| Transmitter Power (EIRP) |
2.4G: ≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC) 5.8G: ≤30dBm(FCC/SRRC/ISED/RCM); ≤14dBm(CE/UKCA) |
| Hovering Accuracy |
Vertically: ±0.1 meters (when visual positioning is working normally) ±0.3 meters (when GNSS is working normally) Horizontally: ±0.15 meters (when visual positioning is working normally) ±0.3 meters (when GNSS is working normally) |
Gimbal:
| Gimbal | 3-axis stabilization |
| Mechanical range |
Pitch: -135°~45° Roll: -45°~45° Yaw: -90°~90° |
| Controllable rotation range | Pitch: -90°~30° |
| Max control speed (Tilt) | 100°/s |
| Angular Vibration Range | ±0.003° |
Visual Perception System:
| Sensing range |
Forward: 0.2~23 meters Effective obstacle avoidance speed: ＜10m/s Backward: 0.2~30 meters Effective obstacle avoidance speed: ＜10m/s Downward: 0.2~20 meters |
| Forward | 75° horizontally, 87° vertically |
| Backward | 35° horizontally, 45° vertically |
| Downward | 99° horizontally, 83° vertically |
| Effective use of the environment |
Front, rear: The surface has rich texture and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment) Below: The ground is richly textured and the lighting conditions are sufficient (>15 lux, normal indoor fluorescent lighting environment) The surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.) |
Remote Controller & Transmission:
| Controller Model | Autel Smart Controller SE V2 |
| Operating frequency |
900M: 902 - 928MHz* 2.4G: 2.400 – 2.476GHz**，2.400 – 2.4835GHz 5.2G: 5150-5250MHz*** 5.8G: 5.725 - 5.829GHz**，5.725 - 5.850GHz *Only applicable to FCC and ISED regions **Only applicable to SRRC regions ***Only applicable to FCC and RCM regions Note: Some frequencies are only available in some regions or only used in door. For details, please refer to local law and regulations. |
|
Effective Isotropic Radiated Power (EIRP) |
900M：≤30dBm (FCC/ISED) 2.4G：≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC) 5.2G:  ≤30dBm (FCC/RCM) 5.8G：≤30dBm (FCC/SRRC/ISED/RCM); ≤14dBm(CE) |
| Max Transmission Distance (unobstructed, free of interference) | FCC：12km CE/SRRC: 8 km |
| Display screen | 1440×720 |
| Battery | 1900 mAh |
| Operating time |
1.5 hours (Max brightness) 2.5 hours (50% brightness) |
| Charging time |
About 90 minutes (charging time is related to actual remaining power) |
| Internal Storage |
Built-in storage of 32GB Available storage: 24GB |
Thermal Camera:
| Sensor | Uncooled VOx Microbolometer |
| Lens | FOV: 61° |
| Focal length: 9.1 mm | |
| Zoom | 1-16x digital zoom |
| Pixel size | 12μm |
| Wavelength range | 8 - 14μm |
| Radiometric temperature range | -20°C to 150°C (high gain mode); 0 to 550°C (low gain mode) |
| Radiometric measurement accuracy | ±3°C or reading ±3% (using the larger value) @ ambient temperature ranges from -20°C to 60°C |
| Accurate temperature measurement distance |
1-25 meters |
| Video resolution | 640×512 30P |
| Video format | MOV / MP4 (Support H.264/H.265) |
| Photo format | JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools) |
Visible Light Camera:
| Sensor | 1/2 inch CMOS, 48 million pixels |
| Lens |
DFOV: 83.4° Equivalent focal length of 35mm: 24 mm Aperture: f/2.8 Focus distance: 0.5 meter ~ ∞ Focus: FF (Fixed Focus) |
| ISO range | Auto/Manual: ISO100 ~ ISO6400 |
| Shutter speed | 1/10000 ~1/60 seconds |
| Zoom |
4K: 1-16x digital zoom 8K: 1-8x digital zoom |
| Maximum photo size | 4000×3000, 8000×6000 |
| Image Format | JPG |
| Video format | MOV / MP4 |
| Video resolution | 4000×3000 P30 |
| Supported file system | FAT32/exFAT |
Battery:
| Capacity | 6175 mAh |
| Voltage | 11.13 V |
| Battery type | LiPo 3S |
| Energy | 68.7 Wh |
| Weight | 309 g |
| Charging temperature range | +5-+45℃ |
| Storage temperature and humidity | - 10℃ ~ +30℃, 65 ± 20%RH |
| Recommended storage temperature | 22-28℃ |
| Max charging power | 78W |
| Charging time | 90 minutes |
Charger:
| Input | 100-240 V, 50/60 Hz, 1.5A |
| Output | 12.75 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A |
| Output port | Battery charging interface/USB-A |
| Rated power | 63.75W Max |
